Pilz

541265

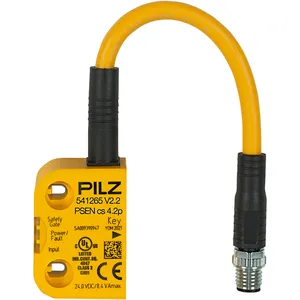

Product type: PSEN cs4.2p Key 1 switch

Datasheet

Description

Safety switch for transponder key PSEN cs4.1 Key, 2 safety outputs, M8, 8-pin male connector, uniquely coded, accessories: key adapter (532113) and key (541181 or 541182 or 541183 or 541184)

Sensor technology
Safety switches
PSENcode - non-contact, coded safety switches
PSENcode key

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 541265.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.035 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	26x37x18 mm
EAN code
Product group	7046
approval	CE UKCA cULus Listed FCC IC TÜV EAC (Eurasian)
unit type	Sensor
cable lines	Li9Y11Y 8 x 0.14 mm2
gross weight	50
connection type	M8, 8-pin male
humidity rating	93 % r. h. at 40 °C
number of inputs	2
sensor principle	Transponder
supply voltage (v)	24 24
transponder coding	fully coded
ambient temperature	-10 55
dc voltage at input	24 V DC
emc to standard ...	EN 60947-5-3
operating frequency	122 kHz - 128 kHz
overvoltage category	III
power consumption dc	1
number of ossd outputs	2
number of sig. outputs	1
acc. shock to standard1	30g
coding level to iso 14119	High
potential isolation s/c o	No
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
housing material upper part	PBT
sensor can be flush-mounted	Yes, follow installation guide
ambient temperature standard	EN 60068-2-14
bend radius (when laying) k1	5 x Ø
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
classification to en 60947-5-3	PDDB
pollution degree clear.&creep.	3
s/c output short circuit proof	Yes
suitable for series connection	yes
utilisation cat. to en 60947-1	DC-12
