Pilz

570001

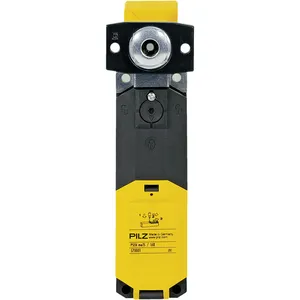

Product type: PSEN me1S / 1AR

Datasheet

Description

Safety gate system with guard locking, with radius actuator,interlocking principle spring force, contacts 2 n/o, 2 n/c, supply voltage 24 V AC/DC.

Read More

Sensor technology
Safety switches
PSENmech - mechanical safety switch
PSENmech with guard locking

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 570001.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.335 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	42.5x184x51 mm
EAN code
Product group	7044
cas no.	7439-92-1
approval	CCC CE BG cCSAus EAC (Eurasian)
unit type	Unit
etim version	ETIM-7.0
gross weight	513 g
holding force	1500 N
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	fixed
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
supply voltage (v)	24 V
ambient temperature	-25 - 70 °C
connection terminal	Spring-loaded terminal
etim reference group	EG000026
power consumption ac	4.4 VA
power consumption dc	4.4 W
%-part of the pollutant	> 0,1
eclass reference feature	27272603
voltage ac1 safety cont.	240 V
reach included substances	Lead
type of supply voltage u1	AC/DC
voltage ac15 safety cont.	230 V
max. current ac1 safety cont.	2.5 A
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. current ac15 safety cont.	2.5 A
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
