570212
Pilz

570212

Product type: PSEN me3 / 2AR

Description

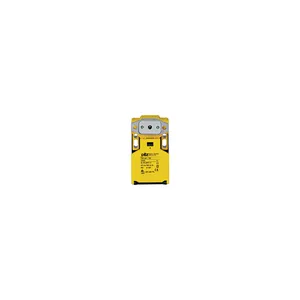

Mechanical safety switch, with radius actuator, contacts: 1 N/O, 1 N/C.
Read More
  • Sensor technology
  • Safety switches
  • PSENmech - mechanical safety switch
  • PSENmech
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.175 KG / psc.
Commodity number85365080
Country of originDE
Dimensions (WxHxD)52x90x33 mm
EAN code
Product group7044
cas no. 7439-92-1 96-45-7
approval CE cCSAus TÜV EAC (Eurasian)
unit type Unit
etim version ETIM-7.0
gross weight 238 g
eclass version ECLASS-9.1
rohs directive 2011/65/EU 2015/863/EU
terminal style fixed
rohs conformity yes
rohs exceptions yes
reach compliance contains min. 1 SVHC-substance
ambient temperature -30 - 80 °C
connection terminal Screw terminal
etim reference group EG000026
%-part of the pollutant > 0,1
eclass reference feature 27272603
voltage ac1 safety cont. 240 V
reach included substances Lead ETU
voltage ac15 safety cont. 240 V
max. current ac1 safety cont. 10 A
rohs except.s acc. to direct. 6a 6c
weee classifikation (08/2018) 5 devices (feed size < 50cm)
max. current ac15 safety cont. 3 A
utilisation cat. ac/dc1 stand. EN 60947-4-1
utilisation cat. ac15/dc13sta. EN 60947-5-1
