Pilz

570482

Name: 570482
Brand: Pilz
Availability: PreOrder

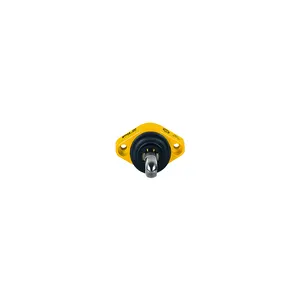

Product type: PSEN ml 1.1 round actuator

Description

Safety gate system with mechanical guard locking, IP67, packagingcontent = 1 coded round actuator

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 570482.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.145 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	7123
approval	CE cULus Listed TÜV
unit type	Actuator
etim version	ETIM-7.0
gross weight	190
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
product material	Zn Galvanised steel Plastic Stainless steel Polycarbonate
sensor principle	Transponder
ul enclosure type	Type 1
transponder coding	coded
ambient temperature	0 60
emc to standard ...	EN 55011: Class A EN 60947-5-3 EN 61326-3-1
etim reference group	EG000026
max. vertical offset	+/-3.0 mm
acc. shock to standard1	50g
eclass reference feature	27272606
coding level to iso 14119	Low
vibration to standard ...	EN 60947-5-2
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
max. ang. offset round x axis	+/-2.0 deg
max. ang. offset round y axis	+/-2.5 deg
max. ang. offset round z axis	+/-7.5 deg
max. offset closing direction	+/-2 mm
weee classifikation (08/2018)	5 devices (feed size < 50cm)
