Pilz

570488

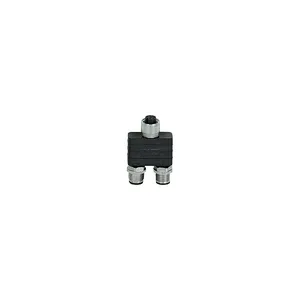

Product type: PSEN ml / PDP67 Y junction M12

Datasheet

Description

Plug-in connector, Y-adapter, IP67, M12 male connector (X1, evaluationdevice), 8-pin, A-coded on M12 female connector (X3, sensor), 5-pin, A- coded and M12 male connector (X2, evaluation device), 5-pin, A-coded, to conduct the OSSD signals from PSENmlock to an M12-port of PDP67.

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Adapter

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 570488.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.034 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA
etim version	ETIM-7.0
gross weight	34 g
rated current	2 A
seal material	FPM
eclass version	ECLASS-9.1
housing colour	Black
connector type 1	5-pin M12 male connector
connector type 2	5-pin M12 male connector
connector type 3	8-pin M12 female connector
housing material	TPU
material of pins	CuZn, gold-plated
ambient temperature	-20 - 80 °C
material of sockets	CuZn, gold-plated
eclass reference feature	27272692
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
coding of m12 connector 3	A coded
matl threaded ring conn 1	Zn, nickel-plated
matl threaded ring conn 2	Zn, nickel-plated
contact surfaces material 1	Au
contact surfaces material 2	Au
contact surfaces material 3	Au
housing material connector 3	TPU
material threaded ring conn 3	Zn, nickel-plated
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	3
