Pilz

584568

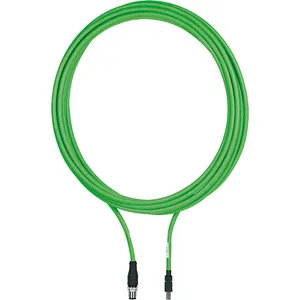

Product type: PSEN cable M12-4sm MIOsm MOVE, 5m

Datasheet

Description

Connection lead, PUR, green RAL6018, Ethernet Cat5e, shielded, suitable for drag chains, 4-pin, connector straight M12 D-coded, onconnector straight Industrial Mini I/O, cable length: 5 m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Pre-assembled cable

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 584568.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.335 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA
gross weight	340 g
halogen-free	yes
length cable	5 m
shielding k1	yes
stranding k1	Star quad
rated current	0.5 A
oil resistance	resistant
connector type 1	4-pin M12 male connector
connector type 2	8-pin Mini-IO male connector
flame resistance	UL-Style 20549 UL 758, FT1
cable material k1	Cu
ambient temperature	-20 - 60 °C
category of cable k1	Cat5
number of conductors	4
type of shielding k1	Wire mesh
conductor cross section	0.34 mm²
colour cable insulation 1	Green, similar to RAL6018
matl threaded ring conn 1	CuZn nickel-plated
shape of connector type 1	straight
shape of connector type 2	straight
cable cross section awg k1	22
material shield surface k1	Sn
contact surfaces material 1	CuZn, gold-plated
contact surfaces material 2	Au
insulation material cable k1	PE
typ. conductor resistance k1	120 Ohm/km
typ. characteristic imped. k1	100 Ohm
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
specific conductor capacity k1	52pF/m
trailing capability of cable 1	yes
