620015

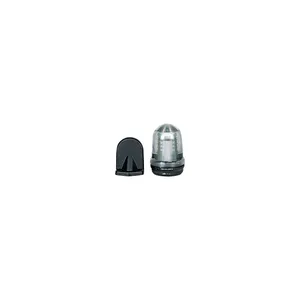

Product type: PIT si2.1 LED muting lamp

Datasheet

Description

PITsign LED muting lamp including LED and wall mounting, UB = 24 V DC / 4 W / <200 mA, protection type housing: IP65, diameter: 90 mm, height:125 mm, signal lamp for muting mode.

Operating and monitoring
Control and signal devices
PITsign - muting lamps
PITsign

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 620015.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.205 KG / psc.
Commodity number	85311095
Country of origin	DE
Dimensions (WxHxD)	0x125x0 mm
EAN code
Product group	7031
lamp	LED
approval	CE
diameter	90
cable entry	ISO 20 mm
lamp colour	yellow
etim version	ETIM-7.0
gross weight	334
eclass version	ECLASS-9.1
self-monitored	no
mounting position	upright
supply voltage (v)	24 24
ambient temperature	-20 50
connection terminal	Screw terminal
etim reference group	EG000035
power consumption dc	4
eclass reference feature	27143209
housing material of cover	PC
type of supply voltage u1	DC
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	ABS
