Pilz

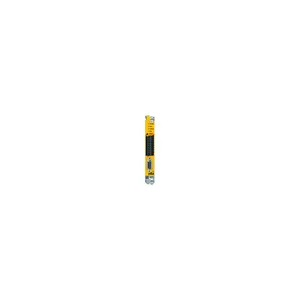

680004

Product type: PMCprotego S1-2

Datasheet

Description

Drive-integral safety card for the servo amplifier series PMCprotego D implementable safety level: SIL 3 in accordance with EN/IEC 62061 supported safety functions: STO, SS1, SS2, SOS, SLS, SSR, SDI, SBC, SBT, SLI, SLP.

Drive technology
Servo amplifier
PMCprotego - safe motion
PMCprotego S safety card

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 680004.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.15 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	18.5x142x103 mm
EAN code
Product group	7073
approval	CE UKCA TÜV
etim version	ETIM-7.0
gross weight	170 g
eclass version	ECLASS-9.1
humidity class	3K3
terminal style	plug-in
humidity rating	85 % r. h.
permitted loads	Resistive Inductive Capacitive
reach compliance	contains min. 1 SVHC-substance
application range	Failsafe
ambient temperature	0 °C
emc to standard ...	EN 61800-3
overvoltage category	II
signal data input abs	Differential signal (RS 422)
supply voltage for abs	10 ... 30 VDC 4.75 ... 5.25 VDC
condensation permitted?	Not permitted
number 2-pin sc outputs	1
signal clock output abs	Differential signal (RS 422)
eclass reference feature	27023201
number of digital inputs	9
protection type standard	EN 60529
supply voltage for incr.	10 ... 30 VDC 4.75 ... 5.25 VDC
ambient temperature class	3K3
vibration to standard ...	EN 60721-3-2
signal level at input at 0	-3 - +5 VDC
climatic suitability to ...	EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
galv. isolation 2pole s/c o	Yes
housing material upper part	Polyester film
tolerance ext. volt. dc s/c	-15 %/+20 %
ambient temperature standard	DIN EN 60721-3-3
housing material front plate	Steel 1.4016
storage temperature standard	DIN EN 60721-3-1
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	EN 61800-5-1
climatic suitability standard	DIN EN 60721-3-3
number of incremental encoder	1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
connection (increment encoder)	9-pin D-Sub female connector
no. of inputs absolute encoder	1
phase pos. diff.sign. inc.enc.	90° ±30°
pollution degree clear.&creep.	2
s/c output short circuit proof	Yes
