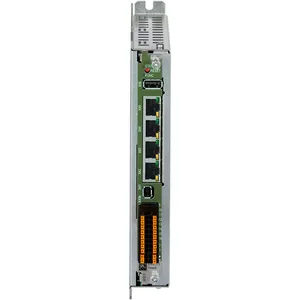

| Weight | 0.516 KG / psc. |
| Commodity number | |
| Country of origin | |
| Dimensions (WxHxD) | 30x199x99 mm |
| EAN code | |
| Product group | 7009 |
| ram | 512 MB |
| approval | CE UKCA |
| canopen type | Master Slave |
| cooling type | Built-in fan |
| gross weight | 616 g |
| profibus type | Slave |
| purpose of u1 | supply |
| terminal style | plug-in |
| humidity rating | 93 % r. h. at 40 °C |
| permitted loads | Resistive Inductive Capacitive |
| number of inputs | 8 |
| application range | Standard |
| mounting position | any |
| canopen cycle time | 1 ms, 2 ms, 4 ms |
| supply voltage (v) | 24 V |
| ambient temperature | 0 - 40 °C |
| emc to standard ... | EN 61131-2 |
| overvoltage category | II |
| pot. isol. s/c output | Yes |
| processor clock speed | 1.3 GHz |
| signal data input abs | Differential signal (RS 422) |
| name profibus protocol | DPV0 |
| supply voltage for abs | 10 ... 30 VDC |
| acc. shock to standard1 | 150 m/s² |
| condensation permitted? | Not permitted |
| memory for applications | 512 MB |
| signal clock output abs | Differential signal (RS 422) |
| profibus manufacturer id | 0DCCh |
| profibus operating modes | AutoBaud |
| protection type standard | EN 60529 |
| supply voltage for incr. | 10 ... 30 VDC 4.75 ... 5.25 VDC |
| potential isolation input | Yes |
| type of supply voltage u1 | DC |
| vibration to standard ... | EN 60068-2-6 |
| canopen transmission times | 500 kBit/s 250 kBit/s 1000 kBit/s |
| ethercat transmission rate | 100 MBit/s |
| ethernet transmission rate | 1 Gbit/s |
| perm. operating height asl | 2000 m |
| signal level at input at 0 | -3 - +5 VDC |
| climatic suitability to ... | EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14 |
| housing material upper part | Polyester film |
| tolerance ext. volt. dc s/c | -15 %/+20 % |
| ambient temperature standard | EN 60068-2-14 |
| connector type ethercat int. | RJ45 |
| connector type ethernet int. | RJ45 |
| housing material front plate | Steel 1.4016 |
| name description file profib | Pilz0DCC.gsd |
| number of canopen interfaces | 1 2 |
| pot. isol. ethernet & system | Yes |
| storage temperature standard | EN 60068-2-1/-2 |
| u input to en 61131-2 type 1 | 24 V DC |
| clearance & creepage dist. to | EN 61131-2 |
| climatic suitability standard | EN 60068-2-78 |
| connection (absolute encoder) | Mini-IO female connect., 8-pin |
| ethernet ip addr. factory set | 192.168.0.11 |
| number of ethernet interfaces | 1 |
| number of incremental encoder | 1 |
| pot. isolation can and system | yes |
| potential isolation 1 between | Rotary encoder&system voltage |
| potential isolation 2 between | Ethernet and system voltage |
| potential isolation 3 between | EtherCAT and system voltage |
| potential isolation 6 between | CANopen and system voltage |
| type of potential isolation 1 | Basic insulation |
| type of potential isolation 2 | Basic insulation |
| type of potential isolation 3 | Basic insulation |
| type of potential isolation 6 | Basic insulation |
| weee classifikation (08/2018) | 5 devices (feed size < 50cm) |
| connection (increment encoder) | 8-pin Mini-IO female connector |
| connector type profibus inter. | RJ45 |
| no. of inputs absolute encoder | 1 |
| perm. profib. statn. addresses | 0 ... 126d |
| phase pos. diff.sign. inc.enc. | 90° ±30° |
| pollution degree clear.&creep. | 2 |
| pot. isolation absolute&system | Yes |
| pot. isolation ethercat&system | Yes |
| s/c output short circuit proof | Yes |
| setting profibus station addr. | Software |
