Pilz

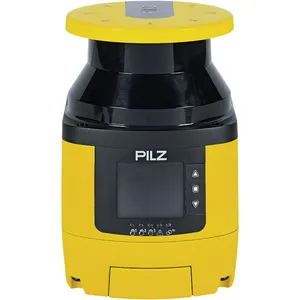

6D000016

Product type: PSEN sc M 3.0 08-12

Datasheet

Description

Master model, 30 mm/40 mm/50 mm/70 mm/150 mm detection capability, muting, override, EDM, restart application in accordance with EN ISO61496-3, vertical applications, reference markers, measurement data output (UDP), rapid exchange by exchangeable memory block; 3.0 m safety zone; max. 2 safety zones parallel active, max. 2 warning zones parallel active, max. 10 configurable zone sets.

Sensor technology
Optoelectronic protective devices
PSENscan - Safety Laser Scanner
PSENscan

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6D000016.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.53 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	102x152x112.5 mm
EAN code
Product group	7131
approval	CE cULus Listed TÜV
espe type	3
etim version	ETIM-7.0
gross weight	2140
product type	Master
reaction time	62 62
rotation time	30
scanning area	275°
eclass version	ECLASS-9.1
connection type	M12, 8-pin male M12, 12-pin male
humidity rating	Max. 95 %
housing material	Aluminium
sensor principle	optical
angular resolution	0.1°
supply voltage (v)	24 24
ambient temperature	-10 50
dc voltage at input	24 V
power consumption dc	8
material front screen	PMMA
used wavelength range	905 nm
number of ossd outputs	4
selectable resolutions	50 40 30 150 70
acc. shock to standard1	10g
condensation permitted?	Not permitted
eclass reference feature	27272791
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
current "0" s/c o psenscan	< 700 µA
ethernet transmission rate	100 MBit/s
perm. operating height asl	2000 m
signal level at input at 0	< 5 V
housing material upper part	PC
max. opening angle vertical	0.12°
connector type ethernet int.	M12x1, 4-pin, D-code
range warning zone var. res.	40 m/Resolution 150 mm 22 m/Resolution 40 mm 19 m/Resolution 30 mm 23 m/Resolution 50 mm 40 m/Resolution 70 mm
number of ethernet interfaces	1
number of zone configurations	10
weee classifikation (08/2018)	5 devices (feed size < 50cm)
range safety zone various res.	3 m/Resolution 40 mm 2.50 m/Resolution 30 mm 3 m/Resolution 50 mm 3 m/Resolution 70 mm 3 m/Resolution 150 mm
