750105

Product type: PNOZ s5 24VDC 2 n/o 2 n/o t

Datasheet

Description

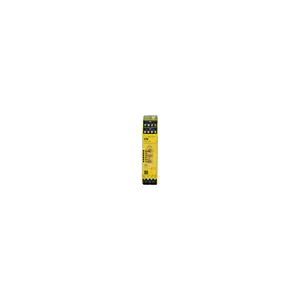

PNOZsigma safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, manual/automatic start, outputs: 2 N/O, 2 N/O t-d (t = 0.04 - 300 s), 1 SC, UB = 24 V DC, width: 22.5 mm, plug-in screw terminals, monitoring of E-STOP, safety gates, light curtain.

Relay modules
Safety relays / protection relays
PNOZsigma - safety relays
Time monitoring

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 750105.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.235 KG / psc.
Commodity number	85364190
Country of origin	DE
Dimensions (WxHxD)	22.5x98x120 mm
EAN code
Product group	7003
cas no.	7439-92-1 1317-36-8
approval	CCC CE cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	245 g
tolerance tv	+/-1 % + +/-20 ms
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
number of inputs	2
reach compliance	contains min. 1 SVHC-substance
selectable times	0.8 s 0.4 s 0.2 s 0.3 s 15 s 1.5 s 2.5 s 25 s 35 s 0.5 s 0.6 s 7 s 6 s 3 s 4 s 5 s 210 s 150 s 0.1 s 0.04 s 8 s 80 s 90 s 60 s 20 s 50 s 30 s 40 s 16 s 1 s 2 s 70 s 0.7000000000000001 s 100 s 120 s 300 s 200 s 140 s 160 s 14 s 180 s 3.5 s 12 s 240 s 10 s
mounting position	any
supply voltage (v)	24 V
ambient temperature	-10 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1
repetition accuracy	+/-1 % + +/-20 ms
etim reference group	EG000019
overvoltage category	III / II
power consumption dc	4 W
relay contact material	AgCuNi
%-part of the pollutant	> 0,1
condensation permitted?	Not permitted
max. delay time formula	tv + 15 % + 20 ms
eclass reference feature	27371819
flex. cond. c/s awg info	24 - 12 AWG
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
reach included substances	Lead Lead oxide
safety contacts: ac at ul	240 VAC G.U. (same polarity)
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
climatic suitability to ...	EN 60068-2-78
housing material upper part	PC
number of semicond. outputs	1
safety contacts: pilot duty	R300 B300
tolerance in event of error	+/-15 % + +/-20 ms
addit. contact details relay	+ 0.2 µm Au
housing material front plate	PC
clearance & creepage dist. to	EN 60947-1
max. current ac1 safety cont.	6 A
max. current dc1 safety cont.	6 A
rohs except.s acc. to direct.	34 7a 6c 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
max. current ac15 safety cont.	3 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
utilisation cat. to en 60947-1	DC-12
