Pilz

751160

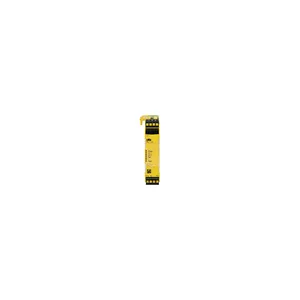

Product type: PNOZ s20 C 24VDC 2so

Datasheet

Description

PNOZsigma contact expansion, outputs: 2 SC safety outputs 1 standard SC output, UB = 24 V DC, width: 22.5 mm plug-in spring-loaded terminals, expansion module for expansion in connectionwith safety-related control components.

Relay modules
Safety relays / protection relays
PNOZsigma - safety relays
Contact expansions

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 751160.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.12 KG / psc.
Commodity number	85364190
Country of origin	DE
Dimensions (WxHxD)	22.5x100x120 mm
EAN code
Product group	7003
approval	CE CCC cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	130 g
purpose of u1	Module supply
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
mounting position	any
supply voltage (v)	24 V
ambient temperature	-10 °C
connection terminal	Spring-loaded terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1
etim reference group	EG000019
overvoltage category	III
power consumption dc	95 W
condensation permitted?	Not permitted
eclass reference feature	27371819
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
housing material upper part	PC
max. device circuit breaker	4 A, autom., characteristic B
number of semicond. outputs	0
housing material front plate	PC
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
utilisation cat. to en 60947-1	DC-12
