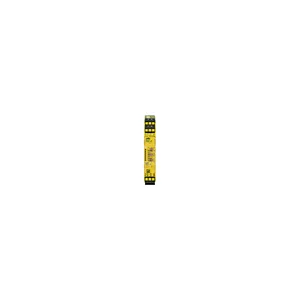

Product type: PNOZ s9 C 24VDC 3 n/o t 1 n/c t coated

Datasheet

Description

PNOZsigma timer relay (standalone), inputs: 1-channel wiring, outputs: 3 N/O t-d, 1 N/C, (t = 0.04 - 300 s), UB = 24 V DC, width: 17.5mm, plug-in spring-loaded terminals, contact block and timer relay for contact expansion in connection with safety-related control components or for the process of a safe timer function(energising, fallback, pulsing), coated version.

Relay modules
Safety relays / protection relays
PNOZsigma - safety relays
Time monitoring

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 751189.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.175 KG / psc.
Commodity number	85364190
Country of origin	DE
Dimensions (WxHxD)	17.5x100x120 mm
EAN code
Product group	7003
approval	CCC CE cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	185 g
tolerance tv	+/-1 % + +/-20 ms
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
selectable times	0.8 s 0.7 s 0.4 s 0.2 s 0.3 s 15 s 2.5 s 1.5 s 25 s 35 s 0.5 s 0.6 s 7 s 6 s 3 s 5 s 4 s 210 s 150 s 0.1 s 0.04 s 8 s 80 s 90 s 60 s 50 s 20 s 40 s 30 s 16 s 1 s 2 s 70 s 100 s 120 s 140 s 300 s 200 s 160 s 3.5 s 180 s 14 s 240 s 12 s 10 s
mounting position	any
supply voltage (v)	24 V
ambient temperature	-10 °C
connection terminal	Spring-loaded terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1
repetition accuracy	+/-1 % + +/-20 ms
etim reference group	EG000019
overvoltage category	III
power consumption dc	2 W
relay contact material	AgCuNi
condensation permitted?	Not permitted
max. delay time formula	tv + 15 % + 20 ms
min. delay time formula	tv - 15 % - 20 ms
eclass reference feature	27371819
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
safety contacts: ac at ul	240 VAC G.U. (same polarity)
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
climatic suitability to ...	EN 60068-2-78
housing material upper part	PC
tolerance in event of error	+/-15 % + +/-20 ms
addit. contact details relay	+ 0.2 µm Au
housing material front plate	PC
number of del. aux. contacts	1
clearance & creepage dist. to	EN 60947-1
max. current ac1 safety cont.	6 A
max. current dc1 safety cont.	6 A
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
max. current ac15 safety cont.	5 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
