Pilz

760100

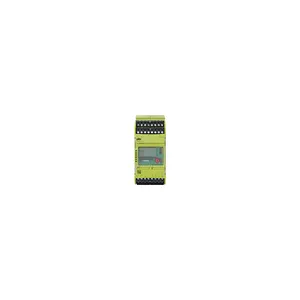

Product type: PMD s10 24-240VAC/DC UM100-550VAC/DC

Power monitoring device

Datasheet

Description

True power monitoring device for measuring and monitoring the true power of electrical loads, limit values that can be set via display, can be saved to chip card,relay output: 2 changeover contacts, analogue output: 4 - 20 mA and 0 - 10 V DC operating voltage: 24 - 240 V AC/DC, measuring voltage: 100 - 550 V AC, measuring current: 1 - 12 A, screw terminals.

Relay modules
Monitoring relays / monitoring devices
PMDsigma - monitoring relays
PMDsigma

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 760100.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.34 KG / psc.
Commodity number	90303330
Country of origin	FR
Dimensions (WxHxD)	45x98x120 mm
EAN code
Product group	7072
approval	CE UKCA cULus Listed
etim version	ETIM-7.0
gross weight	350 g
eclass version	ECLASS-9.1
terminal style	plug-in
reach compliance	contains min. 1 SVHC-substance
mounting position	any
supply voltage (v)	24 - 240 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 61000-6-2 EN 61000-6-4
etim reference group	EG000019
overvoltage category	III / II
power consumption ac	5 VA
power consumption dc	3 W
relay contact material	AgNi10
condensation permitted?	Not permitted
eclass reference feature	27371806
flex. cond. c/s awg info	24 - 12 AWG
safety contacts: ac at ul	240 VAC G. U.
type of supply voltage u1	AC/DC
vibration to standard ...	EN 60068-2-6
iout during generator mode	0 - -20 mA
uout during generator mode	0 - -10 V
climatic suitability to ...	EN 60068-2-78
housing material upper part	PC
max. device circuit breaker	Max. conductor cross section
freq. meas. range analog i/p	0, 15 - 400 Hz
housing material front plate	PC
i meas. range analogue input	1 - 12 A
u meas. range analogue input	100 - 550 V
clearance & creepage dist. to	EN 60664-1
uout during motor mode 10-0 v	10 - 0 V
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
react.time analog o/p 15-60 hz	70 - 16 ms
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
