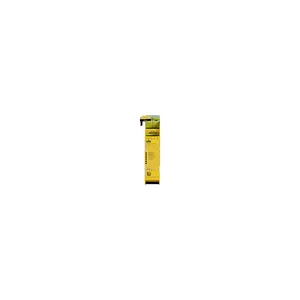

772021

Product type: PNOZ mml2p

Configurable safe compact controller

Datasheet

Description

Configurable safe compact controllers PNOZmulti Mini, connection module for safe connection of decentralised I/O modules. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Small controllers PNOZmulti
Compact controllers PNOZmulti Mini
PNOZmulti Mini - I/O modules
PNOZmulti Mini - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 772021.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.115 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x100x120 mm
EAN code
Product group	7107
cas no.	7439-92-1 1317-36-8
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	115 g
purpose of u1	Module supply
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
supply voltage (v)	24 V
ambient temperature	0 - 60 °C
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	II
power consumption dc	101 W
%-part of the pollutant	> 0,1%
acc. shock to standard1	15g
acc. shock to standard2	25g
condensation permitted?	Not permitted
eclass reference feature	27242208
flex. cond. c/s awg info	24 - 12 AWG
protection type standard	EN 60529
reach included substances	Lead Lead oxide
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
max. cable length shielded	100 m
perm. operating height asl	2000 m
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
max. cable length unshielded	30 m
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
rohs except.s acc. to direct.	7a 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
short circ.prot. ub dec. mods.	Yes
