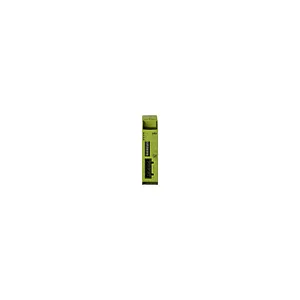

772033

Product type: PNOZ mmc4p DN

Configurable compact controller

Datasheet

Description

Configurable compact controllers PNOZmulti Mini, fieldbus module, DeviceNet. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Small controllers PNOZmulti
Compact controllers PNOZmulti Mini
PNOZmulti Mini - communication modules
PNOZmulti Mini - communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 772033.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.11 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x100x110 mm
EAN code
Product group	7109
approval	CE UKCA cULus Listed EAC (Eurasian)
etim version	ETIM-7.0
gross weight	110 g
purpose of u1	Module supply
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
reach compliance	Contains no SVHC substances
mounting position	horizontal on top hat rail
fieldbus interface	DeviceNet
supply voltage (v)	24 V
ambient temperature	0 - 60 °C
connection fieldbus	5-pin Combicon plug-in connect
connection terminal	Spring-loaded terminal Screw terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
fieldbus device type	Slave
overvoltage category	II
power consumption dc	1.5 W
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242208
flex. cond. c/s awg info	24 - 12 AWG
galv. isolation fieldbus	Yes
protection type standard	EN 60529
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
potential isolation 1 between	Fieldbus and module
selectable transmission rates	500 kBit/s 250 kBit/s 125 kBit/s
type of potential isolation 1	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
perm. fieldbus station address	0 ... 63d
pollution degree clear.&creep.	2
