Pilz

772034

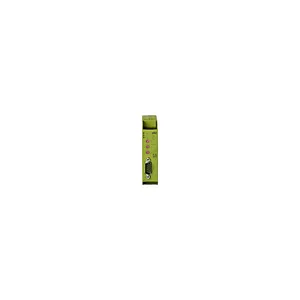

Product type: PNOZ mmc6p CAN

Datasheet

Description

Configurable safe compact controllers PNOZmulti Mini, fieldbus module, CANopen.

Small controllers PNOZmulti
Compact controllers PNOZmulti Mini
PNOZmulti Mini - communication modules
PNOZmulti Mini - communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 772034.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.095 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x100x115 mm
EAN code
Product group	7109
approval	CE UKCA cULus Listed EAC (Eurasian)
etim version	ETIM-7.0
gross weight	105 g
purpose of u1	Module supply
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
reach compliance	Contains no SVHC substances
mounting position	horizontal on top hat rail
fieldbus interface	CANopen
supply voltage (v)	24 V
ambient temperature	0 - 60 °C
connection fieldbus	9-pin D-Sub male connector
connection terminal	Spring-loaded terminal Screw terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
fieldbus device type	Slave
overvoltage category	II
power consumption dc	1.5 W
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242208
flex. cond. c/s awg info	24 - 12 AWG
galv. isolation fieldbus	Yes
protection type standard	EN 60529
name of fieldbus protocol	CiA 301 V4.2.0
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
potential isolation 1 between	Fieldbus and module
selectable transmission rates	10 kBit/s 500 kBit/s 20 kBit/s 250 kBit/s 1 MBit/s 50 kBit/s 800 kBit/s 125 kBit/s
type of potential isolation 1	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
perm. fieldbus station address	0 - 99d
pollution degree clear.&creep.	2
