Pilz

772140

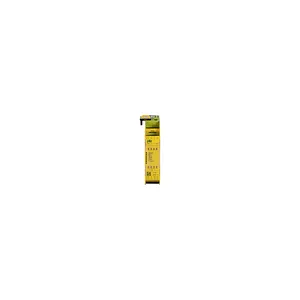

Name: 772140
Brand: Pilz
Availability: PreOrder

Product type: PNOZ m EF 16DI

Description

Configurable safe small controllers PNOZmulti 2, expansion module, 16 safe digital inputs.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 772140.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.095 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x101.4x120 mm
EAN code
Product group	7108
approval	CE UKCA cULus Listed KOSHA TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	105 g
eclass version	ECLASS-9.1
terminal style	plug-in
purpose of uint1	Module supply
application range	Failsafe
mounting position	horizontal on top hat rail
ambient temperature	0 - 60 °C
connection terminal	Spring-loaded terminal Screw terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	II
voltage type of uint1	DC
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242204
flex. cond. c/s awg info	24 - 12 AWG
number of digital inputs	16
protection type standard	EN 60529
potential isolation input	No
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
source of internal voltage	Via base unit
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
