Pilz

772145

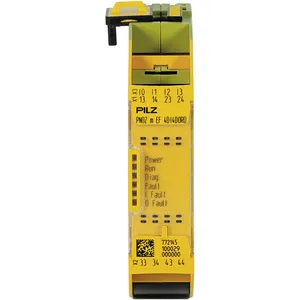

Product type: PNOZ m EF 4DI4DORD

Datasheet

Description

Configurable safe small controllers PNOZmulti 2, expansion module, 4 safe digital inputs, 4 safe relay outputs, diverse, to control the safety valves of a furnace in accordance with EN 50156.

Small controllers PNOZmulti
Small controllers PNOZmulti 2
PNOZmulti 2 - I/O modules
PNOZmulti 2 - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 772145.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.185 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	22.5x101.4x120 mm
EAN code
Product group	7108
approval	CE UKCA TÜV
etim version	ETIM-7.0
gross weight	200 g
eclass version	ECLASS-9.1
terminal style	plug-in
permitted loads	Resistive Inductive
purpose of uint1	Module supply
application range	Failsafe
mounting position	horizontal on top hat rail
ambient temperature	0 °C
connection terminal	Spring-loaded terminal Screw terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	II
pilot duty r300 to ul	24 V DC
voltage type of uint1	DC
relay contact material	AgCuNi
acc. shock to standard1	15g
condensation permitted?	Not permitted
number of relay outputs	4
eclass reference feature	27242204
flex. cond. c/s awg info	24 - 12 AWG
number of digital inputs	4
protection type standard	EN 60529
voltage ac1 safety cont.	250 V
voltage dc1 safety cont.	24 V
potential isolation input	No
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
perm. operating height asl	2000 m
source of internal voltage	Via base unit
housing material upper part	PC
addit. contact details relay	+ 0.2 µm Au
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
pot. isolation relay outputs	Yes
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
max. current ac1 safety cont.	6 A
max. current dc1 safety cont.	6 A
potential isolation 1 between	RL output and system voltage
type of potential isolation 1	Safe separation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
max. current ac15 safety cont.	3 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
