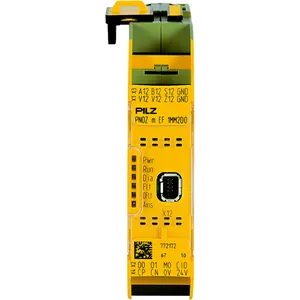

| Weight | 0.131 KG / psc. |
| Commodity number | |
| Country of origin | |
| Dimensions (WxHxD) | 22.5x101.4x120 mm |
| EAN code | |
| Product group | 7108 |
| approval | CE TÜV |
| gross weight | 141 g |
| purpose of u2 | Supply of SC outputs Supply sensor evaluation |
| terminal style | plug-in |
| permitted loads | Resistive Inductive Capacitive |
| purpose of uint1 | Module supply |
| application range | Failsafe |
| mounting position | horizontal on top hat rail |
| ambient temperature | 0 °C |
| connection terminal | Screw terminal Spring-loaded terminal |
| din-rail dimensions | 35 x 7.5 EN 50022 |
| emc to standard ... | EN 61131-2 |
| overvoltage category | II |
| supply voltage 2 (v) | 24 V |
| voltage type of uint1 | DC |
| potential isolation u2 | Yes |
| acc. shock to standard1 | 15g |
| condensation permitted? | Not permitted |
| galv. isol. n/safe sc o | Yes |
| flex. cond. c/s awg info | 24 - 12 AWG |
| protection type standard | EN 60529 |
| type of supply voltage u2 | DC |
| vibration to standard ... | EN 60068-2-6 |
| perm. operating height asl | 2000 m |
| source of internal voltage | Via base unit |
| housing material upper part | PC |
| number of auxiliary outputs | 1 |
| number of cascading outputs | 1 |
| ambient temperature standard | EN 60068-2-14 |
| galv. isol. casc. aux. s/c o | Yes |
| housing material front plate | PC |
| potential isolation of s/c o | Yes |
| storage temperature standard | EN 60068-2-1/-2 |
| clearance & creepage dist. to | EN 61131-2 |
| climatic suitability standard | EN 60068-2-30 EN 60068-2-78 |
| number of incremental encoder | 1 |
| potential isolation 1 between | Sensor and system voltage |
| potential isolation 2 between | SC output and system voltage |
| type of potential isolation 1 | Functional insulation |
| type of potential isolation 2 | Basic insulation |
| weee classifikation (08/2018) | 5 devices (feed size < 50cm) |
| connection (increment encoder) | 8-pin Mini-IO female connector |
| housing material lower section | PC |
| phase pos. diff.sign. inc.enc. | 90° ±30° |
| pollution degree clear.&creep. | 2 |
| prog. mon. fun. wo hyst. incr. | 0.1 Hz - 500 kHz |
| prog. mon.fun. wo hyst prox sw | 0.1 Hz - 5 kHz |
| reaction time over limit value | 1/f_actual + 10ms |
| s/c output short circuit proof | Yes |
| short circ. prot. n/safe s/c o | Yes |
