Pilz

773310

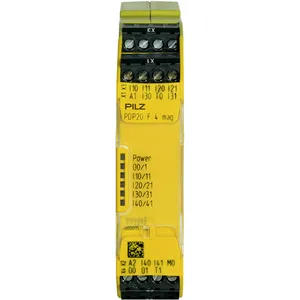

Product type: PDP20 F 4 mag

Datasheet

Description

Interface module for series connection up to 4 contact-based sensors.

Controller
I/O systems
PDP 20
Interface modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773310.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.105 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x98x120 mm
EAN code
Product group	7087
cas no.	7439-92-1 1317-36-8
approval	CE cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	115
purpose of u1	Versorgung des Moduls
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	plug-in
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
application range	Failsafe
mounting position	beliebig
supply voltage (v)	24
ambient temperature	-10
connection terminal	Federkraftklemme Schraubklemme
emc to standard ...	EN 60947-5-1 EN 60947-5-3 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1
dc voltage at output	24 V DC
etim reference group	EG000024
overvoltage category	III
power consumption dc	3.5
relay contact material	AgCdO
%-part of the pollutant	> 0,1%
eclass reference feature	27242208
flex. cond. c/s awg info	24 - 12 AWG
number of digital inputs	8
protection type standard	EN 60529
protection type, housing	IP40
protection type, mounting	IP54
reach included substances	Lead Lead oxide
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
housing material upper part	PC
max. device circuit breaker	6 A slow / 10 A quick
housing material front plate	PC
number of test pulse outputs	2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	EN 60947-1
rohs except.s acc. to direct.	7a 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
utilisation cat. to en 60947-1	DC-12
