Pilz

773600

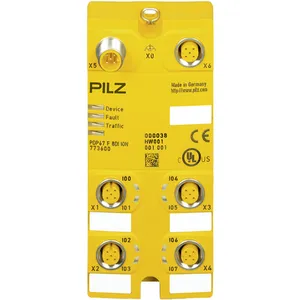

Product type: PDP67 F 8DI ION

Datasheet

Description

Decentralised input module for PNOZmulti, protection type IP67,connection via connection module, 8 safe digital inputs, 8 outputs configurable as a standard, test pulse or 24 V.

Controller
I/O systems
PDP 67
I/O Net p - I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773600.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.25 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	60x133x30 mm
EAN code
Product group	7078
approval	CE BG cULus Listed TÜV
etim version	ETIM-7.0
gross weight	270
purpose of u1	supply
eclass version	ECLASS-9.1
terminal style	screw interlocked
humidity rating	93 % r. h. at 40 °C
permitted loads	Resistive Inductive Capacitive
number of inputs	8
reach compliance	contains min. 1 SVHC-substance
application range	Standard/failsafe
supply voltage (v)	24 24
ambient temperature	-30 60
connection terminal	M12
emc to standard ...	EN 61000-4-8 EN 55011: Class A EN 61000-4-9 EN 61000-4-11 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
dc voltage at output	24 V DC
etim reference group	EG000024
overvoltage category	III
power consumption dc	1.2
function of s/c output	Test pulse output 24 VDC output Standard output
acc. shock to standard1	15g
condensation permitted?	Briefly
eclass reference feature	27242604
protection type standard	EN 60529
potential isolation input	No
terminal v ind. loads off	-45 V
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
signal level at input at 0	-3 - +5 VDC
climatic suitability to ...	EN 60068-2-78
housing material upper part	Valox 855
ambient temperature standard	EN 60068-2-14
potential isolation of s/c o	No
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	IEC 60664-1
climatic suitability standard	EN 60068-2-78
housing material label holder	PC
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
s/c output short circuit proof	Yes
