Pilz

773616

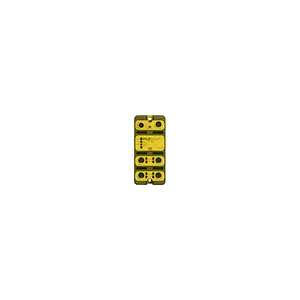

Product type: PDP67 F 8DI ION PT

Datasheet

Description

Decentralised input module for PNOZmulti, protection type IP67,connection via connection module, 8 safe digital inputs, 8 outputs configurable as standard, test pulse or 24 V, plastic connectors.

Controller
I/O systems
PDP 67
I/O Net p - I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773616.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.19 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	61x133x31 mm
EAN code
Product group	7078
approval	CE BG cULus Listed
etim version	ETIM-7.0
gross weight	210
purpose of u1	supply
eclass version	ECLASS-9.1
terminal style	screw interlocked
humidity rating	93 % r. h. at 40 °C
permitted loads	Resistive Inductive Capacitive
number of inputs	8
reach compliance	contains min. 1 SVHC-substance
application range	Standard/failsafe
mounting position	any
ul enclosure type	Type 1 enclosure
supply voltage (v)	24 24
ambient temperature	-30 60
connection terminal	M12
emc to standard ...	EN 61000-4-8 EN 55011: Class A EN 61000-4-9 EN 61000-4-11 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
dc voltage at output	24 V DC
etim reference group	EG000024
overvoltage category	III
power consumption dc	1.2
ambient temp. with ul	40 °C
function of s/c output	Test pulse output 24 VDC output Standard output
acc. shock to standard1	15g
condensation permitted?	Briefly
supply voltage u1 to ul	24 VDC Class 2
eclass reference feature	27242604
protection type standard	EN 60529
potential isolation input	No
terminal v ind. loads off	-45 V
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
signal level at input at 0	-3 - +5 VDC
climatic suitability to ...	EN 60068-2-78
housing material upper part	Valox 553 GF30
ambient temperature standard	EN 60068-2-14
potential isolation of s/c o	No
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	IEC 60664-1
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	Elastollan 1185A
pollution degree clear.&creep.	2
s/c output short circuit proof	Yes
