Pilz

773632

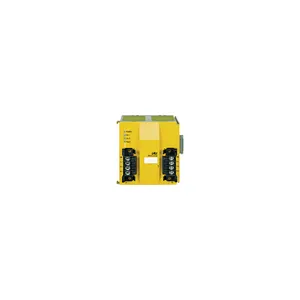

Name: 773632
Brand: Pilz
Availability: PreOrder

Product type: PNOZ po3.3p 3n/o

Description

Expansion module PNOZpower modular safety system, 3 safety contacts (N/O) 5.5 kW (AC3 loads), plug-in terminals of screw type, width: 90 mm.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773632.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.625 KG / psc.
Commodity number	85364190
Country of origin	DE
Dimensions (WxHxD)	90x94x135 mm
EAN code
Product group	7005
approval	CCC CE cULus Listed EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	690 g
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
mounting position	horizontal on top hat rail
supply voltage (v)	24 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61000-6-3 EN 61326-3-1
etim reference group	EG000019
overvoltage category	III
relay contact material	AgCdO
condensation permitted?	Not permitted
eclass reference feature	27371819
flex. cond. c/s awg info	20 - 10 AWG
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
safety contacts: ac at ul	240 VAC G. P.
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
climatic suitability to ...	EN 60068-2-78
housing material upper part	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
max. current ac1 safety cont.	16 A
max. current dc1 safety cont.	16 A
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
max. current ac15 safety cont.	6 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
