Pilz

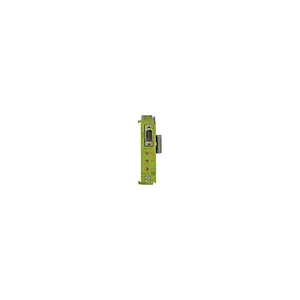

773712

Product type: PNOZ mc6p CANopen 2

Datasheet

Description

PNOZmulti Classic, communication module, standard, fieldbus CANopen, protocol CiA DS-301 V3.0, station addresses 0 - 99, 1 D-Sub maleconnector 9-pin, 8 transmission rates, configurable, 10 kBit/s - 1 MBit/s, 24/128 Bit virtual inputs, 24/128 Bit virtual outputs.

Small controllers PNOZmulti
Safety systems PNOZmulti Classic
PNOZmulti - communication modules
PNOZmulti - communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773712.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.115 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x94x119 mm
EAN code
Product group	7024
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian)
etim version	ETIM-7.0
gross weight	135 g
test voltage	500 V AC
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
purpose of uint1	Module supply
mounting position	horizontal on top hat rail
fieldbus interface	CANopen
ambient temperature	0 °C
connection fieldbus	9-pin D-Sub male connector
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
fieldbus device type	Slave
overvoltage category	III
voltage type of uint1	DC
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242208
galv. isolation fieldbus	Yes
protection type standard	EN 60529
name of fieldbus protocol	CiA DS301 V3.0
tolerance of uint. module	-2 %/+2 %
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
source of internal voltage	Via base unit
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
selectable transmission rates	10 kBit/s 500 kBit/s 20 kBit/s 250 kBit/s 1 MBit/s 800 kBit/s 50 kBit/s 125 kBit/s
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
perm. fieldbus station address	0 - 99d
pollution degree clear.&creep.	2
