Pilz

773716

Name: 773716
Brand: Pilz
Availability: PreOrder

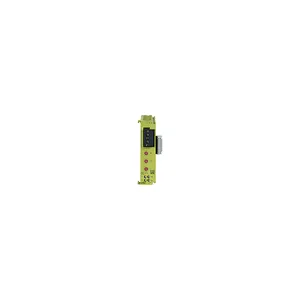

Product type: PNOZ mc7p CC-Link 2

Description

Configurable safe small controllers, PNOZmulti Classic, fieldbus module, CC-Link.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773716.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.11 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x94x122 mm
EAN code
Product group	7024
approval	CE UKCA cULus Listed EAC (Eurasian)
etim version	ETIM-7.0
gross weight	160 g
test voltage	500 V AC
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
purpose of uint1	Module supply
mounting position	horizontal on top hat rail
fieldbus interface	CC-Link V1.10
ambient temperature	0 °C
connection fieldbus	5-pin Combicon plug-in connect
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
fieldbus device type	Slave
overvoltage category	III
voltage type of uint1	DC
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242208
galv. isolation fieldbus	Yes
protection type standard	EN 60529
tolerance of uint. module	-2 %/+2 %
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
potential isolation 1 between	Fieldbus and module
selectable transmission rates	2.5 MBit/s 5 MBit/s 625 kBit/s 10 MBit/s 156 kBit/s
type of potential isolation 1	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
perm. fieldbus station address	0 ... 63d
pollution degree clear.&creep.	2
