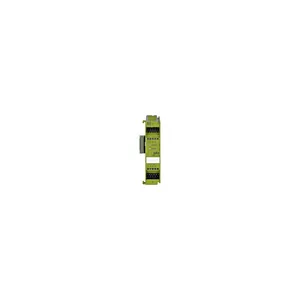

773720

Product type: PNOZ mc0p Powersupply

Configurable safe small controller

Datasheet

Description

Configurable safe small controllers, PNOZmulti Classic, supply voltage, 24 V DC. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Small controllers PNOZmulti
Safety systems PNOZmulti Classic
PNOZmulti - communication modules
PNOZmulti - communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773720.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.19 KG / psc.
Commodity number	85044082
Country of origin	DE
Dimensions (WxHxD)	22.5x94x121 mm
EAN code
Product group	7024
approval	CE UKCA cULus Listed EAC (Eurasian)
etim version	ETIM-7.0
gross weight	190 g
purpose of u1	Module supply
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
supply voltage (v)	24 V
ambient temperature	0 °C
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	III
power consumption dc	5 W
potential isolation u1	Yes
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242209
flex. cond. c/s awg info	24 - 16 AWG
protection type standard	EN 60529
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
potential isolation 1 between	Module and system voltage
type of potential isolation 1	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
