Pilz

773734

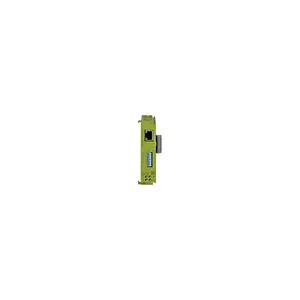

Name: 773734
Brand: Pilz
Availability: PreOrder

Product type: PNOZ mc8p coated version

Description

Configurable safe small controllers, PNOZmulti Classic, fieldbus module, EtherNet/IP, Modbus TCP, expanded temperature range.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773734.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.14 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x94x114 mm
EAN code
Product group	FX
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian)
etim version	ETIM-7.0
gross weight	159 g
test voltage	500 V AC
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
purpose of uint1	Module supply
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
fieldbus interface	EtherNet/IP (TM), Modbus/TCP
ambient temperature	-25 °C
broad band noise to	EN 60068-2-64
connection fieldbus	RJ45
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
fieldbus device type	Slave
overvoltage category	III
voltage type of uint1	DC
acc. shock to standard1	15g
condensation permitted?	Briefly
eclass reference feature	27242208
galv. isolation fieldbus	ja
protection type standard	EN 60529
tolerance of uint. module	-2 %/+2 %
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
source of internal voltage	Via base unit
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
selectable transmission rates	10 MBit/s 100 MBit/s
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
