773810

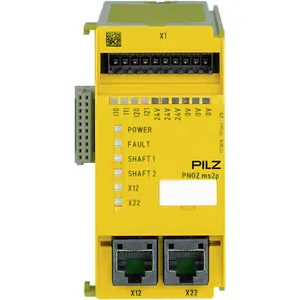

Product type: PNOZ ms2p

Expansion module

Datasheet

Description

PNOZmulti Classic, expansion module, failsafe, motion monitoring of 2 axes, 2 incremental encoders, differential input, Sin/Cos, TTL(RS422), HTL (24 V), RJ45 female connector, 8-pin, adapter cable as an accessory, 4 proximity switches, type pnp. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Small controllers PNOZmulti
Safety systems PNOZmulti Classic
PNOZmulti - I/O modules
PNOZmulti - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773810.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.235 KG / psc.
Commodity number	85364190
Country of origin	DE
Dimensions (WxHxD)	45x94x121 mm
EAN code
Product group	7018
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	235 g
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
purpose of uint1	Module supply
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
ambient temperature	0 °C
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	III
voltage type of uint1	DC
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242205
flex. cond. c/s awg info	24 - 16 AWG
protection type standard	EN 60529
tolerance of uint. module	-2 %/+2 %
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
reaction time at f < 100 hz	10 ms + 1/f
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
number of incremental encoder	2
prog. mon. fun. w hyst. incr.	0.2 Hz - 500 kHz
weee classifikation (08/2018)	5 devices (feed size < 50cm)
connection (increment encoder)	8-pin RJ-45 female connector
housing material lower section	PPO UL 94 V0
phase pos. diff.sign. inc.enc.	90° ±30°
pollution degree clear.&creep.	2
prog. mon. fun. wo hyst. incr.	0.1 Hz - 500 kHz
prog. mon.fun. w hyst prox sw.	0.2 Hz - 3 kHz
prog. mon.fun. wo hyst prox sw	0.1 Hz - 3 kHz
