773812

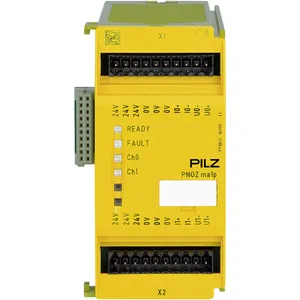

Product type: PNOZ ma1p 2 Analog Input

Expansion module

Datasheet

Description

PNOZmulti Classic, expansion module, failsafe, 2 analogue inputs, - 10.24 - 10.23 V, dual-pole, differential input, resolution 13 Bit, 0 - 25.59 mA, dual-pole, differential input, resolution 12 Bit, range monitoring, threshold value monitoring. Important information: This item is at the end of the product lifecycle and therefore will no longer be available in the foreseeable future. Please get in touch with your PILZ contact to find a suitable alternative or successor product.

Small controllers PNOZmulti
Safety systems PNOZmulti Classic
PNOZmulti - I/O modules
PNOZmulti - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 773812.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.211 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	45x94x121 mm
EAN code
Product group	7018
approval	CE UKCA cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	211 g
purpose of u1	Module supply
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
supply voltage (v)	24 V
ambient temperature	0 °C
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	III
power consumption dc	2 W
type of input filter	RC filter 1st order
acc. shock to standard1	15g
condensation permitted?	Not permitted
type of analogue inputs	Current Voltage
eclass reference feature	27242201
flex. cond. c/s awg info	24 - 16 AWG
protection type standard	EN 60529
number of analogue inputs	2
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
res. anal. i/p i-measurement	12 Bit
storage temperature standard	EN 60068-2-1/-2
value least signif. bit u-me	5 mV
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
potential isol. analogue input	No
resol. anal. i/p u-measurement	13 Bit (12 Bit signed)
