779125

Name: 779125
Brand: Pilz
Availability: PreOrder

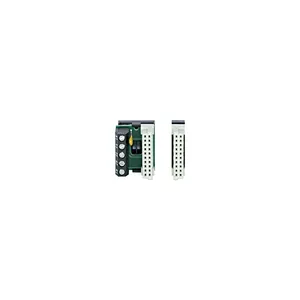

Product type: PNOZpe2p Bus-Interface

Description

Interface PNOZpower for externally connecting to PNOZsigma, PNOZ X, PNOZmulti, PNOZelog, PSS and SafetyBUSp.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 3-4 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 779125.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.027 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	23.5x29x22.5 mm
EAN code
Product group	7005
approval	CE cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	27 g
eclass version	ECLASS-9.1
terminal style	fixed
humidity rating	93 % r. h. at 40 °C
number of inputs	1
mounting position	horizontal on top hat rail
supply voltage (v)	24 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
overvoltage category	III
condensation permitted?	Not permitted
eclass reference feature	27379101
flex. cond. c/s awg info	28 - 14 AWG
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
