Pilz

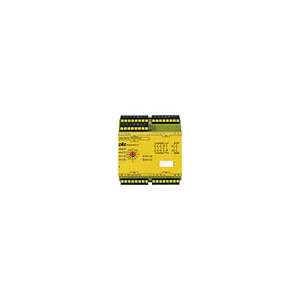

787532

Product type: PNOZ XV3.1P C 3/24-240VACDC 3no 1nc 2no

Datasheet

Description

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 3 N/O, 1 N/C,2 N/O t-d (t = 0.1 - 3 s), automatic/monitored start, UB = 24 - 240 V AC/DC, width: 90 mm, plug-in spring-loaded terminals, monitoring of E-STOP, safety gates. This product has been discontinued. The following products are fully compatible in function: 750105 751105 750135 751135 However, it should be checked for the respective application whether all necessary framework conditions and parameters are also fulfilled for the intended use.

Relay modules
Safety relays / protection relays
PNOZ X - safety relays
Time monitoring

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 787532.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.535 KG / psc.
Commodity number	85364900
Country of origin	FR
Dimensions (WxHxD)	90x101x121 mm
EAN code
Product group	7002
approval	CCC CE cULus Listed EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	545 g
tolerance tv	-15 %/+15 % +50 ms
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
number of inputs	2
reach compliance	contains min. 1 SVHC-substance
selectable times	0.8 s 0.7000000000000001 s 0.4 s 3 s 0.2 s 0.3 s 1.5 s 0.1 s 1 s 2 s 0.5 s 0.6 s
mounting position	any
supply voltage (v)	24 - 240 V
ambient temperature	-10 - 55 °C
connection terminal	Spring-loaded terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1
repetition accuracy	2 %
etim reference group	EG000019
overvoltage category	III / II
power consumption ac	8.5 VA
power consumption dc	5 W
relay contact material	AgSnO2
condensation permitted?	Not permitted
eclass reference feature	27371819
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
safety contacts: ac at ul	240 VAC G. P.
type of supply voltage u1	AC/DC
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
climatic suitability to ...	EN 60068-2-78
housing material upper part	PPO UL 94 V0
number of semicond. outputs	0
safety contacts: pilot duty	C300, R300
addit. contact details relay	+ 0.2 µm Au
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
max. current ac1 safety cont.	8 A
max. current dc1 safety cont.	8 A
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
max. current ac15 safety cont.	5 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
