Pilz

787580

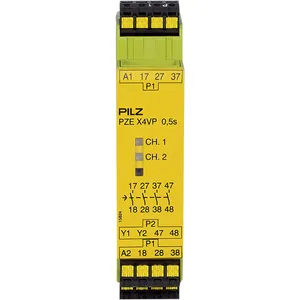

Product type: PZE X4VP C 0,5/24VDC 4n/o fix

Datasheet

Description

Contact expansion, inputs: 1-channel wiring, outputs: 4 N/O t-d (t = 3 s), UB = 24 V DC, width 22.5 mm, plug-in spring-loaded terminals, contact block for contact expansion in connection with safety-related control components.

Relay modules
Safety relays / protection relays
PNOZ X - safety relays
Contact expansions

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 787580.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.185 KG / psc.
Commodity number	85364190
Country of origin	FR
Dimensions (WxHxD)	22.5x101x121 mm
EAN code
Product group	7002
approval	CE CCC cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	195 g
tolerance tv	-50 %/+50 %
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
number of inputs	1
reach compliance	contains min. 1 SVHC-substance
mounting position	any
supply voltage (v)	24 V
ambient temperature	-10 - 55 °C
connection terminal	Spring-loaded terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
etim reference group	EG000019
overvoltage category	III / II
power consumption dc	2.5 W
relay contact material	AgCuNi
condensation permitted?	Not permitted
eclass reference feature	27371819
safety contacts: ac at ul	250 VAC G.U. (same polarity)
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
housing material upper part	PPO UL 94 V0
number of semicond. outputs	0
safety contacts: pilot duty	B300, R300
addit. contact details relay	+ 0.2 µm Au
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
