Pilz

837395

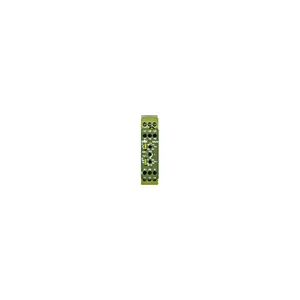

Product type: S3UM 120VAC UM 440/480VAC

Datasheet

Description

Voltage monitoring relay, to monitor overvoltage and undervoltage values, and the phase sequence in 3-phase supplies, 40 -400 Hz, measuring voltage 440/480 V AC, width 22.5 mm, UB = 120 V AC.

Relay modules
Monitoring relays / monitoring devices
PMDsrange - monitoring relays
PMDsrange

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: by agreement Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 837395.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.17 KG / psc.
Commodity number	85364900
Country of origin	FR
Dimensions (WxHxD)	22.5x87x122 mm
EAN code
Product group	7007
cas no.	7439-92-1 1317-36-8
approval	CE CCC UKCA
etim version	ETIM-7.0
gross weight	180 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	fixed
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
mounting position	any
supply voltage (v)	230 V
ambient temperature	-15 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 50081-2 EN 50081-1
etim reference group	EG000019
power consumption ac	2 VA
relay contact material	AgCdO
%-part of the pollutant	> 0,1
condensation permitted?	Not permitted
eclass reference feature	27371801
flex. cond. c/s awg info	24 - 10 AWG
reach included substances	Lead Lead oxide
type of supply voltage u1	AC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
housing material upper part	PPO UL 94 V0
max. device circuit breaker	Max. conductor cross section
addit. contact details relay	+ 3.0 µm Au
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
rohs except.s acc. to direct.	7a 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
