Pilz

G1000003

Product type: PIT gb BLLE y

Datasheet

Description

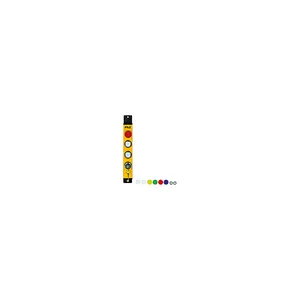

PITgatebox (pushbutton unit), pre-assembled housing with control elements and E-STOP, 40 mm width, box with E-STOP (2 NC / 1 NO) and 2 illuminated pushbuttons (1 NO each), plus 1 key switch (1 NO), connection 12-pin M12 connector, IP65, incl. colour covers incolours GN, BU, RD, YE plus transparent

Operating and monitoring
Control and signal devices
PITgatebox - pushbutton unit
Pushbutton unit PITgatebox

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on G1000003.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.8 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	40x293x40 mm
EAN code
Product group	7149
lamp	LED
approval	CE UL/cUL EAC (Eurasian)
lamp colour	white
etim version	ETIM-7.0
gross weight	1200
eclass version	ECLASS-9.1
self-monitored	no
connection type	M12, 12-pin male
humidity rating	93 % r. h. at 40 °C
housing material	Zn
mounting position	any
ul enclosure type	Type 1
number, e-stop n/c	2
number, pushbutton	2
supply voltage (v)	24 24
ambient temperature	-20 60
etim reference group	EG000017
min. contact current	1
overvoltage category	III
power consumption dc	12
acc. shock to standard1	30g
contact material e-stop	Ag
eclass reference feature	27371228
number of pushbutton n/o	2
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
contact material key switch	Ag
contact material pushbutton	Ag
release type emergency stop	Turn release
switch cap. p/b to standard	EN 60947-5-1
clearance & creepage dist. to	EN 60947-1
climatic suitability standard	EN 60068-2-78
cont. mat. sign. cont. e-stop	Au
number, e-stop signal contact	1
switch cap. key switch stand.	EN 60947-5-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
number key-operated pushbutton	1
pollution degree clear.&creep.	3
switch cap. e-stop to standard	EN 60947-5-1
