Pilz

G1000021

Product type: PIT gb RLLE y down ETH

Datasheet

Description

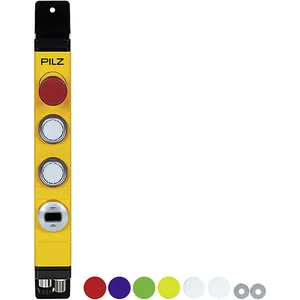

PITgatebox (pushbutton unit), pre-assembled housing with PITreader, control elements and E-STOP, 40 mm width, box with E-STOP (2 NC / 1 NO), 2 illuminated pushbuttons (1 NO each) and PITreader,connection 12-pin M12 connector and 4-pin M12 Ethernet connector, connection bottom plug-in connector, IP65, incl. colour covers in colours GN, BU,RD, YE plus transparent, transponder key not included

Operating and monitoring
Control and signal devices
PITgatebox - pushbutton unit
PITgatebox + PITreader

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on G1000021.
See all ZWOD Sales and Logistics Ltd Pilz products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.92 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	40x320x40 mm
EAN code
Product group	7149
lamp	LED
approval	CE UL/cUL FCC IC EAC (Eurasian)
lamp colour	white
etim version	ETIM-7.0
gross weight	1320
eclass version	ECLASS-9.1
self-monitored	no
connection type	M12, 12-pin male
humidity rating	93 % r. h. at 40 °C
housing material	Zn
mounting position	any
ul enclosure type	Type 1
number, e-stop n/c	2
number, pushbutton	2
supply voltage (v)	24 24
ambient temperature	-20 55
connection terminal	M12
etim reference group	EG000017
min. contact current	1
overvoltage category	III
power consumption dc	2.88
galv. isolation input	No
acc. shock to standard1	30g
contact material e-stop	Ag
number of pushbutton n/o	2
transponder energy supply	Passive (battery-free)
type of supply voltage u1	DC
vibration to standard ...	EN 60947-5-2
ethernet transmission rate	10/100 Mbit/s
sensor principle pitreader	Transponder
signal level at input at 1	15 - 30 VDC
contact material pushbutton	Ag
release type emergency stop	Turn release
switch cap. p/b to standard	EN 60947-5-1
type of power supply for u1	SELV/PELV
connector type ethernet int.	M12x1, 4-pin, D-code
clearance & creepage dist. to	EN 60947-1
climatic suitability standard	EN 60068-2-78
ethernet ip addr. factory set	192.168.0.12
number of ethernet interfaces	1
number, e-stop signal contact	1
operating frequency pitreader	13.24 - 13.88 MHz
weee classifikation (08/2018)	5 devices (feed size < 50cm)
galv. isolation of s/c outputs	No
pollution degree clear.&creep.	3
s/c output short circuit proof	Yes
switch cap. e-stop to standard	EN 60947-5-1
