PULS

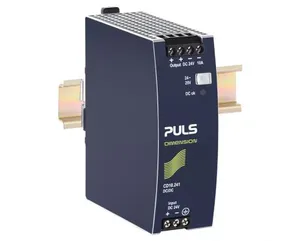

CD10.241

Product type: CD10.241

Standard DC/DC Converter, Input: DC 24V, Output: DC 24-28V, 10A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CD10.241.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.5 KG / psc.
Commodity number	85043121
Country of origin	CN / CZ
Dimensions (WxHxD)	42x124x117 mm
EAN code	875404002635
Product group	A-Standard
m_features	24V DC-input; Isolated 24Vdc output; Efficiency 94.2%; Width only 42mm; 20% output power reserves; Full power between -25°C and +60°C; Soft-start function; Minimal inrush current surge; Reverse input polarity protection
Output power	240W
Output current	8.6A at 28V; 10A at 24V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
Adjustment range	24 - 28V
DC Input voltage	DC 24V (-25%/+46%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	94.2%
Connection method	Screw terminals
Power losses, typ.	14.8W 14.8W
Output current range	10 - 8.6A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	731000h
Ripple and noise voltage max.	50mVpp
Weight per unit (excl. packaging)	500g
