PULS

CD10.482

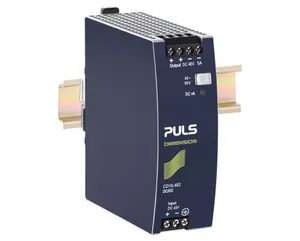

Product type: CD10.482

Standard DC/DC Converter, Input: DC 48V, Output: DC 48-56V, 5A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CD10.482.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.5 KG / psc.
Commodity number	85043121
Country of origin	CN / CZ
Dimensions (WxHxD)	42x124x117 mm
EAN code	875404002918
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	48V DC-input; Isolated 48Vdc output; Efficiency 95.1%; Width only 42mm; 20% Output power reserves; Full power between -25°C and +60°C; Soft-start function; Minimal inrush current surge; Reverse input polarity protection
Output power	240W
Output current	4.3A at 56V; 5A at 48V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	48Vdc
Adjustment range	48 - 56V
DC Input voltage	DC 48V (± 25%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	95.1%
Connection method	Screw terminals
Power losses, typ.	12.4W 12.4W
Output current range	5 - 4.3A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	853000h
Ripple and noise voltage max.	100mVpp
Weight per unit (excl. packaging)	500g
