PULS

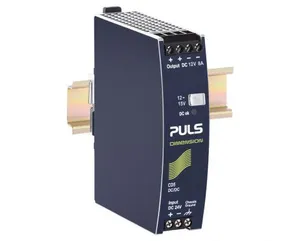

CD5.121

Product type: CD5.121

Standard DC/DC Converter, Input: DC 24V, Output: DC 12-15V, 8A, 96W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CD5.121.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.425 KG / psc.
Commodity number	85043121
Country of origin	CN / CZ
Dimensions (WxHxD)	32x124x102 mm
EAN code	875404001270
Product group	A-Standard
Derating	2.5W/°C for >+60°C
m_features	24V DC-input; Isolated 12Vdc output; Efficiency up to 88.2%; Width only 32mm; 20% Output power reserves; Full power between -25°C and +60°C; Soft-start function; Minimal inrush current surge; Reverse input polarity protection
Output power	96W
Output current	6.4A at 15V; 8A at 12V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	12Vdc
Adjustment range	12 - 15V
DC Input voltage	DC 24V (-25%/+35%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	88.2%
Connection method	Screw terminals
Power losses, typ.	12.8W
Output current range	8 - 6.4A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1161000h
Ripple and noise voltage max.	75mVpp
Weight per unit (excl. packaging)	425g
