PULS

CD5.241-L1

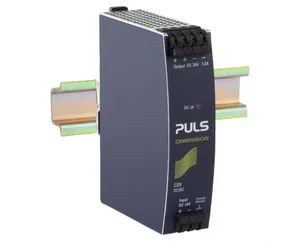

Product type: CD5.241-L1

Same as CD5.241 but with quick-connect spring-clamp terminals and reduced output current to 3.8A, fulfills NEC CLASS 2 power source requirements

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CD5.241-L1.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.425 KG / psc.
Commodity number	85043121
Country of origin	CN / CZ
Dimensions (WxHxD)	32x124x102 mm
EAN code	875404001508
Product group	A-Standard
m_features	24V DC-input; Isolated 24V dc output; NEC Class 2 output; Quick-connect spring-clamp connection terminals; Efficiency up to 90.5%; Width only 32mm; Full power between -25°C and +60°C; Soft-start function; Minimal inrush current surge; Reverse input polarity protection
Output power	92W
Output current	3.8A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
Adjustment range	24V
DC Input voltage	DC 24V (-40%/+35%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	90.5%
Connection method	Spring clamps
Power losses, typ.	9.7W
Output current range	3.8A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1178000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	425g
