PULS

CD5.241-S1

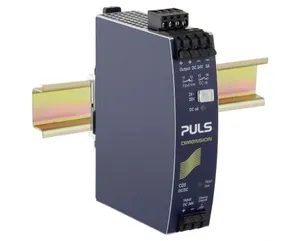

Product type: CD5.241-S1

Same as CD5.241 but with quick-connect spring-clamp terminals, DC-OK contact, input low contact and input low LED

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CD5.241-S1.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.45 KG / psc.
Commodity number	85043121
Country of origin	CN / CZ
Dimensions (WxHxD)	32x124x102 mm
EAN code	875404001256
Product group	A-Standard
Derating	3W/°C for >+60°C
m_features	24V DC-input; Quick-connect spring-clamp connection terminals; Isolated 24V dc output; Efficiency up to 90.2%; Width only 32mm; 20% output power reserves; Full power between -25°C and +60°C; Soft-start function; Minimal inrush current surge; Reverse input polarity protection; DC-OK and input-low relay contact
DC-OK signal	yes
Output power	120W
Output current	4.3A at 28V; 5A at 24V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
Adjustment range	24 - 28V
DC Input voltage	DC 24V (-25%/+35%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	90.2%
Connection method	Spring clamps
Power losses, typ.	13,3W
Output current range	5 - 4.3A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1048000h
Ripple and noise voltage max.	50mVpp
Weight per unit (excl. packaging)	450g
