PULS

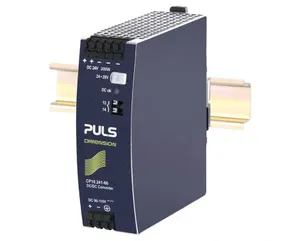

CP10.241-60

Product type: CP10.241-60

DC/DC converter for rolling-stock railroad applications, Input: DC 96-110V, Output: DC 24-28V, 8.3A, 200W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CP10.241-60.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.62 KG / psc.
Commodity number	85044082
Country of origin	CZ
Dimensions (WxHxD)	39x124x117 mm
EAN code	875404002895
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	EN 50155 Railway compliant; Conformal coated PC-boards; Quick-connect spring-clamp terminals; 67-154Vdc wide-range input; Width only 39mm; Efficiency up to 94.5%; Excellent partial load efficiency; Minimal inrush current surge; Full output power between -40°C and +70°C; DC-OK relay contact; Reverse input polarity protected
DC-OK signal	yes
Output power	200W
Output current	7.1A at 28V; 8.3A at 24V
Packaging unit	1 pc
Power reserves	20%
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
Adjustment range	24 - 28V
DC Input voltage	DC 96V - 110V (-30%/+40%)
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	94.5%
Connection method	Spring clamps
Power losses, typ.	11.6W
Input inrush current	2.5A
Output current range	8.3 - 7.1A
Operating temp. range	-40°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	775000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	620g
External input fuse recommendation	B-6A / C-4A
