PULS

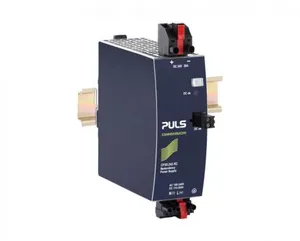

CP20.242-R2

Name: CP20.242-R2
Brand: PULS
Availability: PreOrder

Product type: CP20.242-R2

Power supply with integrated decoupling function 24 V, 20 A enhanced DC input

Description

Standard Redundancy Power Supply, Input: AC 100-240V, DC 110-300V, Output: DC 24V, 20A, 480W, plug connector

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CP20.242-R2.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.85 KG / psc.
Commodity number	85044083
Country of origin	CZ
Dimensions (WxHxD)	48x124x127 mm
EAN code	875404002796
Product group	A-Standard
DC output	24 Vdc
	ETIM 5.0 EC002540
Input	AC 100 - 240 V (-15 %/+10 %)
AC Input voltage	AC 100 - 240 V (-15 %/+10 %)
DC Input voltage	DC 110 V - 300 V (± 20 %)
Harmonic correction	active
Power factor	0.95
Input inrush current limitation	active
Input inrush current	10 A / 4.5 A
External input fuse recommendation	B-10 A / C-10 A
Nominal voltage	24 Vdc
Adjustment range	24 V
Output current range	20 A
Output current	20 A at 24 V
Output power	480 W
Power reserves	20 % Power Boost
Derating	12 W/°C for >+60 °C
Ripple and noise voltage max	50 mVpp
Weight per unit (excl packaging)	850 g
Mounting method	DIN rail
Operating temp range	-40 °C to 70 °C
Connection method	Plug connector
Efficiency, typ	95.2 %
Power losses, typ	24.2 W
MTBF SN 29500 @ 40 °C (h)	543000 h
DC-OK signal	yes
CRA relevant product	No
Warranty period (months)	36
Weight per piece (excl packaging)	850 g
E classification	eClass 5.1 27049002
