PULS

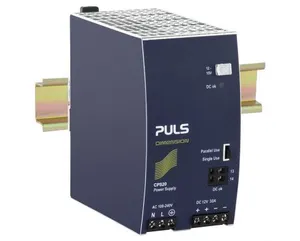

CPS20.121

Product type: CPS20.121

Standard Power Supply, Input: AC 100-240V, Output: DC 12-15V, 30A, 450W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CPS20.121.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	65x124x127 mm
EAN code	875404002154
Product group	A-Standard
Derating	0,75W/°C for >+60°C
m_features	AC 100-240V Wide-range input; Width only 65mm; Efficiency up to 92.6%; ATEX and IECEx approved; Excellent partial load efficiency; Safe Hiccup PLUS overload mode; Easy fuse breaking due to high overload peak current; Active power factor correction (PFC); Minimal inrush current surge; Full power between -25°C and +60°C; DC-OK relay contact; Current sharing feature for parallel use
DC-OK signal	yes
Output power	405W
Power factor	0.95
Output current	27A at 15V; 30A at 12V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	12Vdc
AC Input voltage	AC 100 - 240V (-15%/+10%)
Adjustment range	12 - 15V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	92.6%
Connection method	Screw terminals
Power losses, typ.	28,8W
Harmonic correction	active
Input inrush current	9A / 7A
Output current range	30 - 27A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	554000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	1000g
External input fuse recommendation	B-10A / C-10A
