PULS

CPS20.241-60

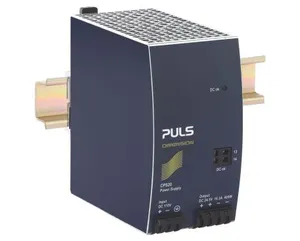

Product type: CPS20.241-60

DC/DC converter for rolling-stock railroad applications, Input: DC 110V, Output: DC 24.5V, 16.3A, 400W, optimized for parallel use, spring-clamp terminals

Datasheet

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CPS20.241-60.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.98 KG / psc.
Commodity number	85043121
Country of origin	CZ
Dimensions (WxHxD)	65x124x127 mm
EAN code	875404002475
Product group	A-Standard
m_features	EN 50155 Railway compliant; Conformal coated PC-boards; Built-in redundancy (decoupling MOSFET at the output); Quick-connect spring-clamp terminals; 77-154Vdc Wide-range input; Width only 65mm; Efficiency up to 93.7%; Excellent partial load efficiency; Safe Hiccup PLUS overload mode; Minimal inrush current surge; Full power between -40°C and +70°C; DC-OK relay contact; Reverse input polarity protected
Output power	400W
Output current	16.3A at 24.5V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24.5Vdc
Adjustment range	24.5V
DC Input voltage	DC 110V (-30%/+40%)
E classification	eClass 5.1 27242213; eClass 6.x 27049005; eClass 7.x 27049005; eClass 8.0 27210901; eClass 9.0 27210901; ETIM 4.0 EC002542; ETIM 5.0 EC002046
Efficiency, typ.	93.7%
Connection method	Spring clamps
Power losses, typ.	26.9W
Output current range	16.3A
Operating temp. range	-40°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	571000h
Ripple and noise voltage max.	70mVpp
Weight per unit (excl. packaging)	980g
