PULS

CS10.243

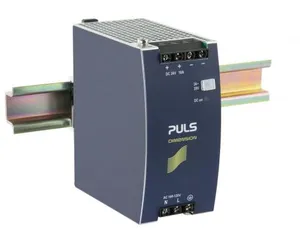

Product type: CS10.243

Standard Power Supply, Input: AC 100-120V, Output: DC 24-28V, 10A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CS10.243.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.7 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	60x124x117 mm
EAN code	875404000952
Product group	A-Standard
Derating	6W/°C for >+60°C
m_features	AC 100-120V single-phase input; Width only 60mm; Efficiency up to 91.3%; Easy fuse breaking due to high overload peak current; 20% Output power reserves; Full output power between 0°C and +60°C
Output power	240W
Power factor	0.57
Output current	8.6A at 28V; 10A at 24V
Packaging unit	1 pc
Power reserves	20% Power Boost
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 100 - 120V (± 10%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	91.3%
Connection method	Screw terminals
Power losses, typ.	23.4W
Input inrush current	85A
Output current range	10 - 8.6A
Operating temp. range	0°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	710000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	700g
External input fuse recommendation	B-16A / C-10A
