PULS

CS10.244

Name: CS10.244
Brand: PULS
Availability: PreOrder

Product type: CS10.244

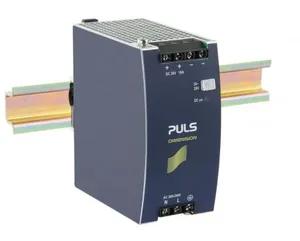

DIN rail power supplies for 1-phase system 24 V, 10 A

Description

Standard Power Supply, Input: AC 200-240V, Output: DC 24-28V, 10A, 240W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CS10.244.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.7 KG / psc.
Commodity number	85044083
Country of origin	CN / CZ
Dimensions (WxHxD)	60x124x117 mm
EAN code	875404000969
Product group	A-Standard
DC output	24 - 28 Vdc
	ETIM 5.0 EC002540
Input	AC 200 - 240 V (± 10 %)
AC Input voltage	AC 200 - 240 V (± 10 %)
Power factor	0.52
Input inrush current limitation	NTC
Input inrush current	48 A
External input fuse recommendation	B-10 A / C-6 A
Nominal voltage	24 Vdc
Adjustment range	24 - 28 V
Output current range	10 - 8.6 A
Output current	8.6 A at 28 V
Output power	240 W
Power reserves	20 % Power Boost
Derating	6 W/°C for >+60 °C
Ripple and noise voltage max	50 mVpp
Weight per unit (excl packaging)	700 g
Mounting method	DIN rail
Operating temp range	0 °C to 70 °C
Connection method	Screw terminals
Efficiency, typ	91.3 %
Power losses, typ	23.4 W
MTBF SN 29500 @ 40 °C (h)	910000 h
CRA relevant product	No
Warranty period (months)	36
Weight per piece (excl packaging)	700 g
E classification	eClass 5.1 27049002
