PULS

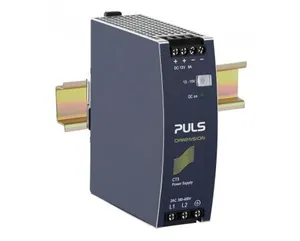

CT5.121

Product type: CT5.121

Standard Power Supply, Input: 3AC 380-480V, Output: DC 12-15V, 8A, 96W

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on CT5.121.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.5 KG / psc.
Commodity number	85044082
Country of origin	CN
Dimensions (WxHxD)	40x124x117 mm
EAN code	875404001522
Product group	A-Standard
Derating	2.5W/°C for >+60°C
m_features	AC 380-480V Wide-range input; Input fuses included; Requires only two legs of a 3-phase system; Width only 40mm; Efficiency up to 85.8%; Input-transient blanking circuit included; Minimal inrush current surge; Full power between -25°C and +60°C
Output power	96W
Power factor	0.44
Output current	6.4A at 15V; 8A at 12V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	12Vdc
AC Input voltage	AC 380 - 480V (-15%/+20%)
Adjustment range	12 - 15V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	85.4%
Connection method	Screw terminals
Power losses, typ.	16.4W
Harmonic correction	PFC
Input inrush current	4A / 4A
Output current range	8 - 6.4A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	983000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	500g
External input fuse recommendation	B-6A / C-3A
