PULS

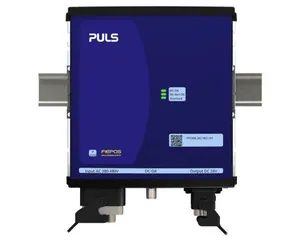

FPT300.242-002-101

Product type: FPT300.242-002-101

Input: 3AC 380-480V, Output: DC 24V, 1 output, 300W, DC-OK, IN: HAN Q4/2 OUT: HAN Q4/0, IP65/67

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on FPT300.242-002-101.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.2 KG / psc.
Commodity number	85044082
Country of origin	CZ
Dimensions (WxHxD)	182x183x59 mm
EAN code	875404003717
Product group	A-Standard
Derating	10W/°C for +55 to +70°C
m_features	IP65/67 degree of protection; 450W continuously for 60s; 600W peak 1s; 3AC 380-480V wide-range input; 95% full load and excellent partial load efficiencies; DIN rail mounting possible, option “D”; Output connected to PE (PELV); Version without connection to PE on request; Large output capacitors; Not potted; Negligible low input inrush current surge; Full power between -25°C and +55°C; DC-OK relay contact; Input HanQ4/2 / Output HanQ4/0
DC-OK signal	yes
Output power	300W
Power factor	0.9
Output current	12.5A at 24V; 12.5A at 24V
Packaging unit	1 pc
Power reserves	50% (up to 60s)
Product status	Lead time on request
Nominal voltage	24Vdc
AC Input voltage	AC 380 - 480V (± 15%)
Adjustment range	24 - 24V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	95%
Connection method	Input: HanQ4/2 \| Output: HanQ4/0
Power losses, typ.	15.8W
Input inrush current	1.5A
Output current range	12.5 - 12.5A
Operating temp. range	-25°C to 70°C
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	814000h
Ripple and noise voltage max.	100mVpp
Input inrush current limitation	active
Weight per unit (excl. packaging)	1200g
External input fuse recommendation	B-6A / C-6A
