PULS

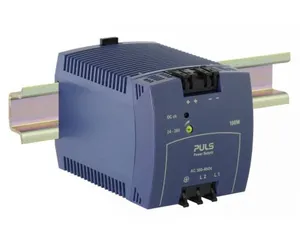

ML100.200

Product type: ML100.200

Standard Power Supply, Input: AC 380-480V, Output: DC 24-28V, 4.2A, 100W

Datasheet

Description

The PULS ML100.200 is a reliable 24V DIN-rail power supply designed for industrial automation. With an output of 24-28V DC and 4.2A, it delivers up to 100W of continuous power. This power supply features a compact design and high efficiency, suitable for OEMs, control cabinets, and automation systems. Key features include: – AC input: 380–480V – Output: 24–28V DC, 4.2A – High efficiency and long service life Ideal replacement for older models in the ML series, like ML100.100 or ML90.200. !! Order your PULS ML100.200 power supply today – fast shipping.

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 1-2 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on ML100.200.
See all ZWOD Sales and Logistics Ltd PULS products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.36 KG / psc.
Commodity number	85044082
Country of origin	CN / CZ
Dimensions (WxHxD)	73x75x103 mm
EAN code	875404000747
Product group	A-Standard
Derating	2.5W/°C for >+60°C
m_features	380-480V 2-Phase input; Efficiency up to 89.5%; No Neutral wire required; Full output power between -10 and +60°C; Quick-connect spring-clamp terminals
Output power	100W
Power factor	0.6
Output current	3.6A at 28V; 4.2A at 24V
Packaging unit	1 pc
Product status	Lead time on request
Mounting method	DIN rail
Nominal voltage	24Vdc
AC Input voltage	AC 380 - 480V (± 15%)
Adjustment range	24 - 28V
E classification	eClass 5.1 27049002; eClass 6.x 27049002; eClass 7.x 27049002; eClass 8.0 27049002; eClass 9.0 27040701; ETIM 4.0 EC000599; ETIM 5.0 EC002540
Efficiency, typ.	89.5%
Connection method	Spring clamps
Power losses, typ.	11.7W
Input inrush current	30A / 36A
Output current range	4.2 - 3.6A
Warranty period (months)	36
MTBF SN 29500 @ 40°C (h)	1594000h
Ripple and noise voltage max.	50mVpp
Input inrush current limitation	NTC
Weight per unit (excl. packaging)	360g
External input fuse recommendation	B-10A / C-6A
